Can I Get BlocOut for my Window?

Large Windows?

Our standard BlocOut fits windows up to 1900mm wide and 1600mm high.
BlocOut Plus and Smart blinds fit windows up to 2400mm wide and 2400mm high.

Windows not Perfectly Square/Rectangular?

Our BlocOut blinds can tolerate uneven windows. Take your measurements and put them into our Blind Builder to find out if it will work.

Window Recess is Small?

Don't worry, you can get a BlocOut to fit on the wall Surface around your window

Before You Measure...

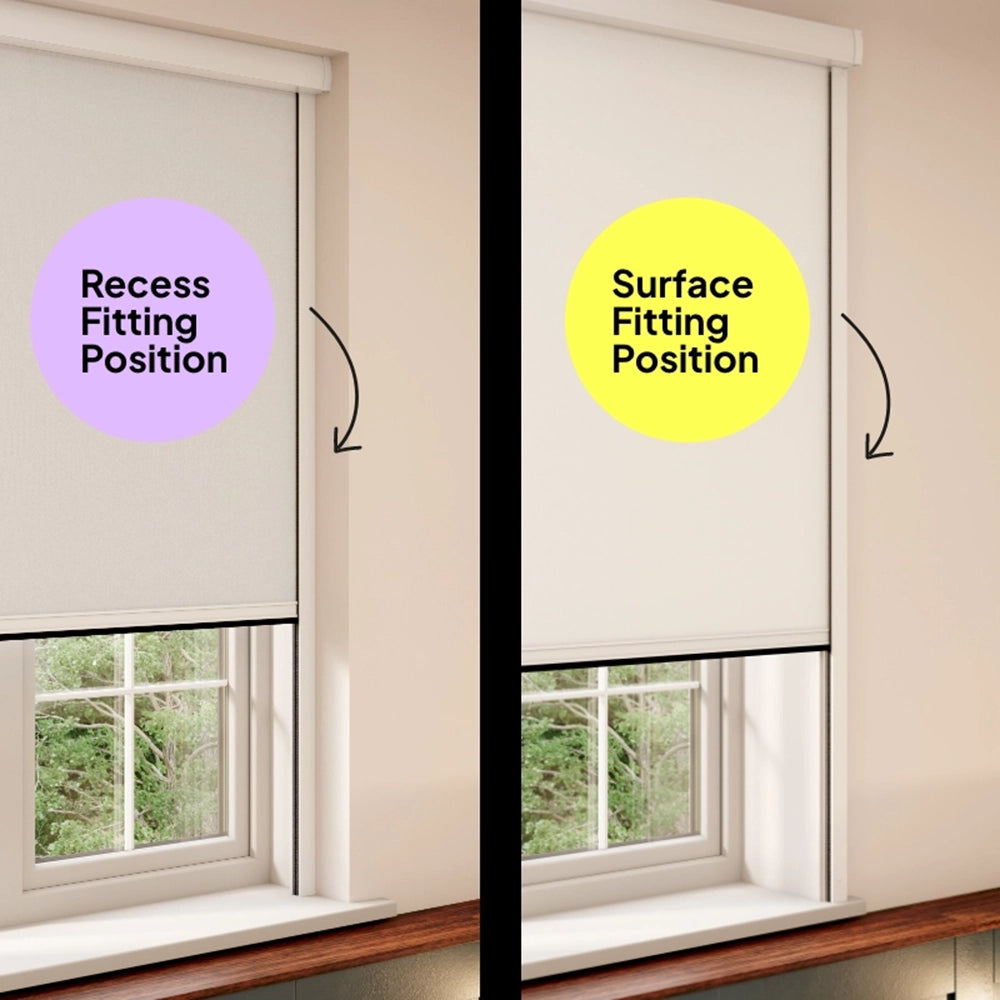

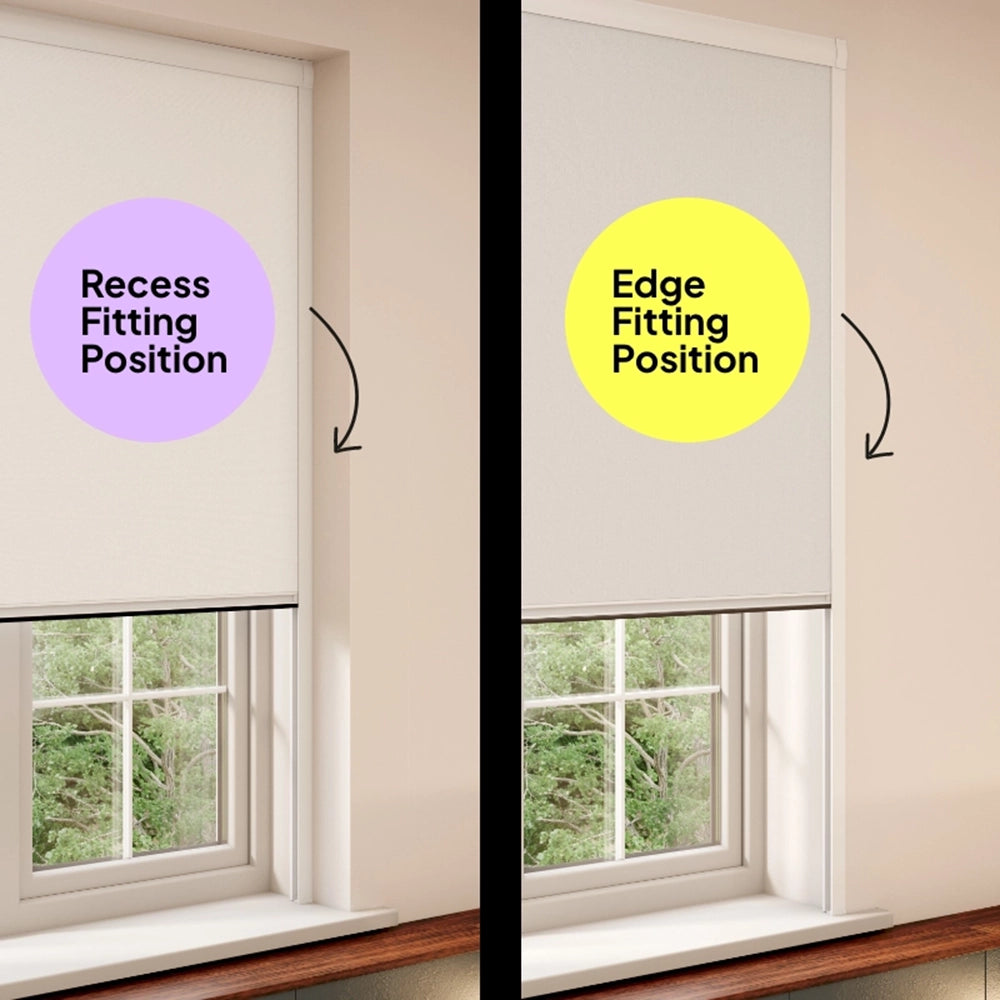

Fitting Positions Explained

  • A image showing the position of a BlocOut Plus blind installed in the recess of a window.

    Recess Fitting Position

    The blind will be positioned inside the window recess.

    Recess fitting positions are available for the BlocOut Touch, BlocOut Plus and BlocOut Smart blinds.

  • Edge Fitting Positions

    The blind will be positioned on the front edge of the window space.

    Edge fitting positions are available for the BlocOut Touch blinds.

  • Surface Fitting Positions

    The blind will mounted on the wall surface around the window space.

    Surface fitting positions are available for the BlocOut Plus and BlocOut Smart blinds.

Recess Fitting - How to Measure

Recess fitting position is available for BlocOut Touch, BlocOut Plus and BlocOut Smart blinds.
  • A diagram showing where to measure the width of a window, for a blind that will be installed in the recess fitting position.

    Recess - Width

    Measure horizontally inside the window recess.

  • A diagram showing where to measure the height of a window, for a blind that will be installed in the recess fitting position.

    Recess - Height

    Measure vertically inside the window recess.

  • A photo showing where to get the depth measurement on the recess of a window.

    Recess - Depth

    Measure the depth of the window recess.

Edge Fitting - How to Measure

Edge fitting position is available for BlocOut Touch blinds.
  • A diagram showing where to measure the width of a window, for a blind that will be installed in the edge fitting position.

    Edge - Width

    Measure horizontally on the edge of the window recess.

  • A diagram showing where to measure the height of a window, for a blind that will be installed in the edge fitting position.

    Edge - Height

    Measure vertically on the edge of the window recess.

  • A photo showing where to get the depth measurement on the recess of a window.

    Edge - Depth

    Measure the depth of the window recess. Although the blind will be fitted on the Edge of the window recess, we still need this measurement to ensure compatibility.

Surface Fitting - How to Measure

Surface fitting is available for the BlocOut Plus and BlocOut Smart blinds.
  • A diagram showing where to measure the width of a window, for a blind that will be installed in the surface fitting position.

    Surface - Width

    Measure horizontally on the edge of the window recess.

    Make sure to add +100 millimetres (mm) to the width of the window. Input the total measurement (window width +100mm) into the Blind Builder on our website.

    We will use these measurements to make your blind to fit on the wall surface around your window.

  • A diagram showing where to measure the height of a window, for a blind that will be installed in the surface fitting position.

    Surface - Height

    Measure vertically on the edge of the window recess.

    Make sure to add +140 millimetres (mm) to the actual height of the window recess. Input the total measurement (window height +140mm) into the Blind Builder on our website.

    We will use these measurements to make your blind to fit on the wall surface around your window.

Video Measuring Guides

We require several measurements so your custom made blind can be perfectly fitted to your window space with no light gaps. Measure where you will be fitting the Blind, using our video guides below.

  • BlocOut Touch - Recess Fitting

  •

    BlocOut Touch - Edge Fitting

  •

    BlocOut Plus / Smart - Recess Fitting

  •

    BlocOut Plus / Smart - Surface Fitting

Professional Measure & Fit Service - we can do it all for you.

Our BlocOut-approved installer visits your home to measure up, then returns later to expertly fit your blind.

Currently available in Northern Ireland only.

Measure Protect Insurance

A person is measuring the width of a window using a yellow tape measure. They are indoors, standing in a room with white walls and a crib in the background. The window offers a view of a suburban street with houses visible outside. The person is wearing a grey sweater and holding the tape measure with both hands, stretching it across the window frame.
Peace-of-Mind

With Measure Protect Insurance (available to add at checkout), you can guarantee a perfect fit for every blind. We will insure your measurements against mistakes, even if the new size is slightly bigger. We will collect your blinds, make amendments and send the new blinds to you. The price of Measure Protect Insurance is calculated as 15% of the cost of your blind.

Still Need Help?

Measuring your window opening for BlocOut blinds is easy, using our diagrams and video guides above. That said, we understand you might want to double-check something or just get some additional guidance. We are here to help you.
